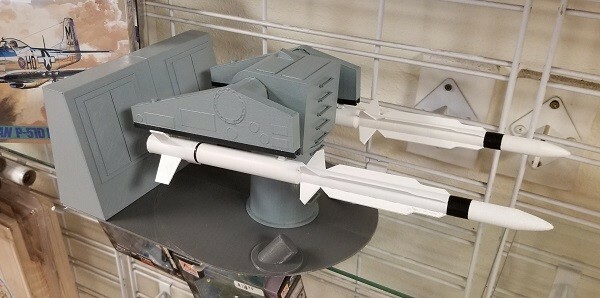

Mk-10 Guided Missile Launching System (GMLS) Static Model Kit, 1/44

Free Shipping. 1/44 Scale Kit. Includes Missiles, Bulkhead and Deck.  Printed in gray.

I designed this model with CAD and 3d printed it.

Optional Spray Paint.  A hobby knife is required.

Tips:  Refer to online pictures of the Mk-10 GMLS for placement of parts.

Assemble one guide arm on the guide arm support cylinder, slide the cylinder through the launcher block, and then attach the other guide arm to the support cylinder being careful to align the guide arms in parallel.

You can use electrical tape to simulate missile stripes.

The missile is fully printed, no assy required.

The launcher can be trained and elevated to your preference for display. Therefore don't glue the block to the stand or the guide arm cylinder to the block.

From shipbucket:

The Mk 10 GMLS was the ultimate Terrier missile launcher, and had a place in many development even after RIM-2 Terrier was considered outdated. The first installation, on the USS Coontz, was commissioned in 1960. In 1962 the first non-US Navy installation was commissioned, the Dutch Zeven Provincien. The system was decomissioned in USN service in 1995 and by the last foreign user, the Italian Navy, in 2006.

The GMLS consists of the standard Terrier twin arm launcher, loader rail, a finning area and a magazine. The arrangement of the finning area, loader rail and magazine vary over the different installations. The magazine always consists of Ready Rervice Rings (RSR). These rings have space for 20 missiles each. There are either 2, 3 or 4 RSR, with hoists going from the upper 2 RSR into the finning area, and from the lower 1 or 2 RSR to the upper RSR. From the magazine the missiles are carried up trough an blast hatch into the finning area. There the fins are attached, after which the missile is moved over the loader rail towards the launcher. The loader rail can either be horizontal or diagonal, depending on the height of the launcher compared to the magazine.

The GMLS was developed for use with the RIM-2 Terrier missile. It could have all variants in her magazine, even the updated variants that replaced the Tartar final stage of the Terrier with the new Standard missile, creating the RIM-67 Standard Missile ER. It was also proposed to use the Mk 10 GMLS with RIM-50 Typhon LR, but this was never done operationally because of this missile systems cancellation. Some Mk 10 variants are known to have had the ability to carry RUR-5 ASROC in her magazines. Because these rockets are a lot shorter than Terrier missiles, an adapter had to be used. This adapter was brought out to the launcher for firing and back into the magazine afterwards, reducing the rate of fire somewhat. ASROC could only be carried on the 2 upper Ready Service Rings, in alternating slots, limiting the amount of ASROC's to be carried to 20 for all variants.
